Normal operating condition

Description

RELATED TO NOISE

The majority of the audio concerns are the result of outside causes (bad CD, electromagnetic interference, etc.).

The following noise results from variations in field strength, such as fading noise and multi-path noise, or external noise from trains and other sources. It is not a malfunction.

  • Fading noise: This noise occurs because of variations in the field strength in a narrow range due to mountains or buildings blocking the signal.
  • Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the antenna at a different time from the waves which reflect off mountains or buildings.

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.

Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and operation of each piece of electrical equipment, and determine the cause.

NOTE: The source of the noise can be found easily by listening to the noise while removing the fuses of electrical components, one by one.

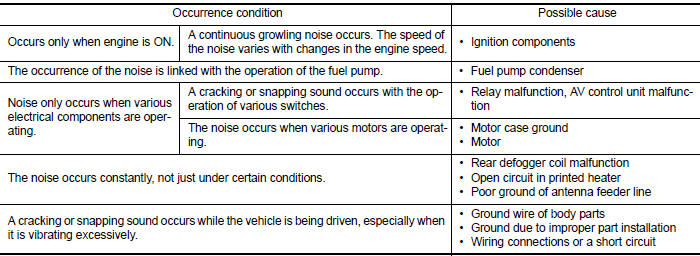

Type of Noise and Possible Cause

Type of Noise and Possible Cause

RELATED TO HANDS-FREE PHONE

Symptom Cause and Counter measure
Does not recognize cellular phone connection (No connection is displayed on the display at the guide). Some Bluetooth enabled cellular phones may not be recognized by the in-vehicle phone module.

Refer to "RELATED TO HANDS-FREE PHONE (Check Compatibility)" in AV "Symptom Table".

Cannot use hands-free phone. Customer will not be able to use a hands-free phone under the following conditions:
  • The vehicle is outside of the telephone service area.
  • The vehicle is in an area where it is difficult to receive radio waves; such as in a tunnel, in an underground parking garage, near a tall building or in a mountainous area.
  • The cellular phone is locked to prevent it from being dialed.

NOTE: While a cellular phone is connected through the Bluetooth wireless connection, the battery power of the cellular phone may discharge quicker than usual. The Bluetooth Hands-Free Phone System cannot charge cellular phones.

RELATED TO NAVIGATION

Basic Operation

Basic Operation

Vehicle Mark

Vehicle Mark

Vehicle Mark

Destination, Passing Points and Menu Items Cannot be Selected/Set

Destination, Passing Points and Menu Items Cannot be Selected/Set

Voice Guide

Voice Guide

Route Search

Route Search

NOTE: Except for the ordinance-designated cities. (Malfunctioning areas may be changed in the updated map disc.)

Examples of Current-Location Mark Displacement

Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle is driven in the following manner, an error will occur in the vehicle's current location display. If correct location has not been restored after driving the vehicle for a while, perform location correction.

Examples of Current-Location Mark Displacement

Examples of Current-Location Mark Displacement

Examples of Current-Location Mark Displacement

Examples of Current-Location Mark Displacement

Location Correction by Map-Matching is Slow

  • The map-matching function needs to refer to the data of the surrounding area. It is necessary to drive some distance for the function to work.
  • Because map-matching operates on this principle, when there are many roads running in similar directions in the surrounding area, no matching determination may be made. The location may not be corrected until some special feature is found.

Name of Road is Not Displayed

The current road name may not be displayed if there are no road names displayed on the map screen.

Contents of Display Differ for Birdview and the (Flat) Map Screen

Difference of the BIRDVIEW screen from the flat map screen are as follows.

  • The current place name displays names which are primarily in the direction of vehicle travel.
  • The amount of time before the vehicle travel or turn angle is updated on the screen is longer than for the (flat) map display.
  • The conditions for display of place names, roads, and other data are different for nearby areas and for more distant areas.
  • Some thinning of the character data is done to prevent the display becoming too complex. In some cases and in some locations, the display contents may differ.
  • The same place name, street name, etc. may be displayed multiple times.

Vehicle Mark Shows a Position Which is Completely Wrong

In the following cases, the vehicle mark may appear on completely different position in the map depending on the GPS satellite signal receiving conditions. In this case, perform location correction and direction correction.

  • When location correction has not been done

- If the receiving conditions of the GPS satellite signal is poor, if the vehicle mark becomes out of place, it may move to a completely different location and not come back if location correction is not done. The position will be corrected if the GPS signal can be received.

  • When the vehicle has traveled by ferry, or when the vehicle has been being towed

- Because calculation of the current location cannot be done when traveling with the ignition off, for example when traveling by ferry or when being towed, the location before travel is displayed. If the precise location can be detected with GPS, the location will be corrected.

Vehicle Mark Jumps

In the following cases, the vehicle mark may appear to jump as a result of automatic correction of the current location.

  • When map matching has been done

- If the current location and the vehicle mark are different when map matching is done, the vehicle mark may seem to jump. At this time, the location may be "corrected" to the wrong road or to a location which is not on a road.

  • When GPS location correction has been done

- If the current location and the vehicle mark are different when the location is corrected using GPS measurements, the vehicle mark may seem to jump. At this time, the location may be "corrected" to a location which is not on a road.

Vehicle Mark is in a River or Sea

The navigation system moves the vehicle mark with no distinction between land and rivers or sea. If the vehicle mark is somehow out of place, it may appear that the vehicle is driving in a river or the sea.

Vehicle Mark Automatically Rotates

The system wrongly memorizes the rotating status as stopping when the ignition switch is turned ON with the turntable rotating. That causes the vehicle mark to rotate when the vehicle is stopped.

When Driving on Same Road, Sometimes Vehicle Mark is in Right Place and Sometimes it is in Wrong Place The conditions of the GPS antenna (GPS data) and gyroscope (angular speed sensor) change gradually.

Depending on the road traveled and the operation of the steering wheel, the location detection results will be different. Therefore, even on a road on which the location has never been wrong, conditions may cause the vehicle mark to deviate.

REMOVAL AND INSTALLATION
