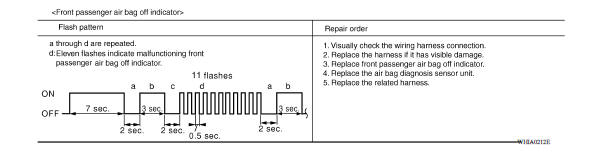

DTC B1023 FRONT PASSENGER AIR BAG OFF INDICATOR
The front passenger air bag off indicator is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit monitors the front passenger air bag off indicator and circuit for failures.
PART LOCATION
Refer to SRC "Component Parts Location".
DTC DETECTION LOGIC
With CONSULT
Without CONSULT
DTC CONFIRMATION PROCEDURE (With CONSULT)
1.CHECK SELF-DIAG RESULT
Is the DTC detected?
YES (Current DTC)>>Refer to SRC "Diagnosis Procedure".
YES (Past DTC)>>GO TO 2.
NO >> Inspection End.
2.ERASE SELF-DIAG RESULT
Erase the DTC using CONSULT.
Can the DTC be erased?
YES >> Inspection End.
NO >> Refer to SRC "Diagnosis Procedure".
DTC CONFIRMATION PROCEDURE (Without CONSULT)
1.CHECK SELF-DIAG RESULT
NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode.
Is the DTC detected?
YES >> Refer to SRC "Diagnosis Procedure".
NO >> Inspection End.
1.HARNESS CONNECTOR
Visually inspect all applicable harness connectors for the following:
NOTE: All harness connectors should be inspected from the air bag diagnosis unit to the end component (including any in-line connectors).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Perform one of the following repairs:
2.CONFIRM DTC
Is DTC still current?
YES >> GO TO 3
NO >> Refer to GI "Intermittent Incident".
3.WIRING HARNESS
Check the wiring harness for visible damage NOTE.
NOTE: The entire wiring harness should be inspected from the air bag diagnosis sensor unit to the end component (including any in-line connectors).
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace the harness.
4.CONFIRM DTC
Is DTC still current?
YES >> GO TO 5.
NO >> Refer to GI "Intermittent Incident".
5.AIR BAG DIAGNOSIS SENSOR UNIT
Is DTC still current?
YES >> GO TO 6.
NO >> Clear DTC. Inspection End.
6.FRONT PASSENGER AIR BAG OFF INDICATOR
Replace the front passenger air bag off indicator. Refer to IP, "Removal and Installation".
>> GO TO 7
7.RELATED HARNESS
Replace the related harness.
>> END
