Nissan Versa (N17): B2623 Inside antenna

Nissan Versa 2nd generation (N17) Service Manual / Body exterior, doors, roof & vehicle security / Door & lock (DLK) / B2623 Inside antenna

DTC Logic

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

  1. Select INTELLIGENT KEY of BCM using CONSULT.
  2. Select INSIDE ANT DIAGNOSIS in WORK SUPPORT mode.
  3. Perform inside key antenna (INSIDE ANT DIAGNOSIS) on WORK SUPPORT of INTELLIGENT KEY.
  4. Check BCM for DTC.

Is inside key antenna DTC detected?

YES >> Refer to DLK "Diagnosis Procedure".

NO >> Inside key antenna (trunk room) is OK.

Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "INTELLIGENT KEY SYSTEM : Wiring Diagram".

1.CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

  1. Turn ignition switch ON.

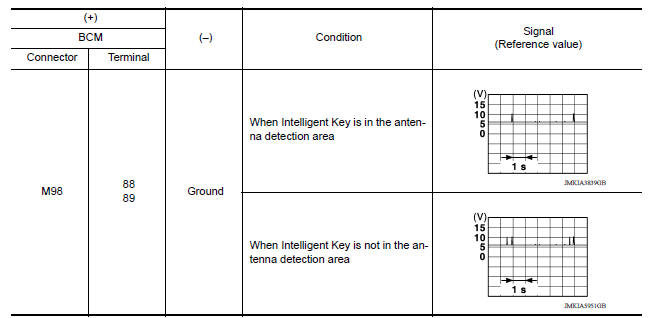

  2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES >> Replace BCM. Refer to BCS "Removal and Installation".

NO >> GO TO 2.

2.CHECK INSIDE KEY ANTENNA CIRCUIT

  1. Turn ignition switch OFF.
  2. Disconnect BCM connector and inside key antenna (trunk room) connector.
  3. Check continuity between BCM harness connector and inside key antenna (trunk room) harness connector.
  4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

  1. Replace inside key antenna (trunk room). (New antenna or other antenna)
  2. Connect BCM connector and inside key antenna (trunk room) connector.
  3. Turn ignition switch ON.
  4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES >> Replace inside key antenna (trunk room).

NO >> Replace BCM. Refer to BCS "Removal and Installation".
