AUTO ACTIVE TEST
Description
In auto active test, the IPDM E/R sends a drive signal to the following systems to check their operation.
Operation Procedure
NOTE: Never perform auto active test in the following conditions.
1. Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper operation)
NOTE: When auto active test is performed with hood opened, sprinkle water on windshield beforehand.
2. Turn the ignition switch OFF.
3. Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the ignition switch OFF.
4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test starts.
5. After a series of the following operations is repeated 3 times, auto active test is completed.
NOTE:
Inspection in Auto Active Test
When auto active test is actuated, the following operation sequence is repeated 3 times.

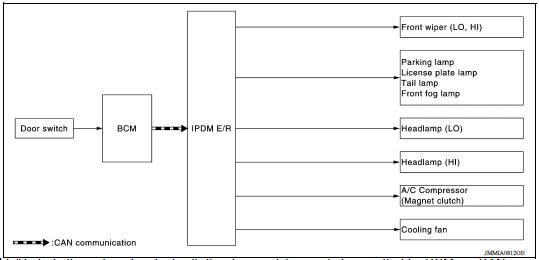

Concept of Auto Active Test

Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto active test starts successfully.
Diagnosis Chart in Auto Active Test

APPLICATION ITEM
CONSULT performs the following functions via CAN communication with IPDM E/R.

ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to PCS "DTC Index".
DATA MONITOR

ACTIVE TEST

CAN DIAG SUPPORT MNTR
Refer to LAN "CAN Diagnostic Support Monitor".
ECU DIAGNOSIS INFORMATION
BCM, IPDM E/R
List of ECU Reference
WITH INTELLIGENT KEY
| ECU | Reference |
| BCM | BCS "Reference Value" |
| BCS "Fail-safe" | |
| BCS "DTC Inspection Priority Chart" | |
| BCS "DTC Index" | |
| IPDM E/R | PCS "Reference Value" |
| PCS "Fail-safe" | |
| PCS "DTC Index" |
WITHOUT INTELLIGENT KEY
| ECU | Reference |
| BCM | BCS "Reference Value" |
| BCS "Fail-safe" | |
| BCS "DTC Inspection Priority Chart" | |
| BCS "DTC Index" | |
| IPDM E/R | PCS "Reference Value" |
| PCS "Fail-Safe" | |
| PCS "DTC Index" |
WIRING DIAGRAM
HEADLAMP
Wiring Diagram






DAYTIME LIGHT SYSTEM
Wiring Diagram






FRONT FOG LAMP
Wiring Diagram





TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
Wiring Diagram






PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
Wiring Diagram







STOP LAMP
Wiring Diagram

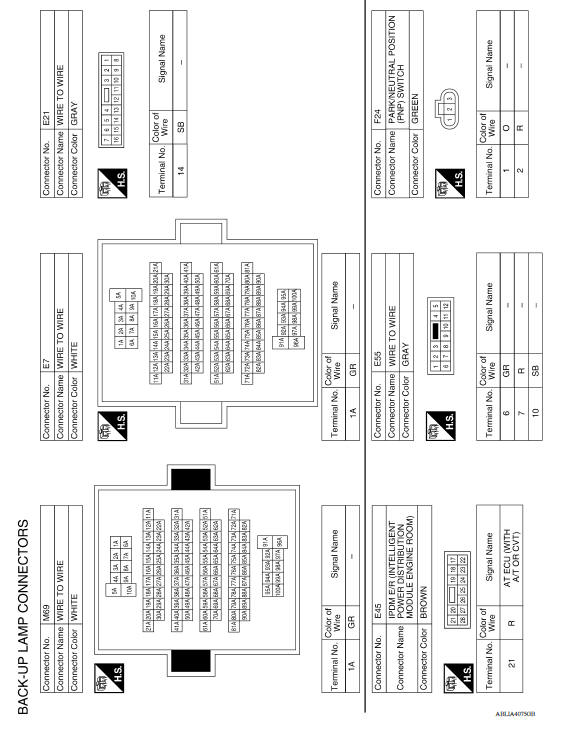

BACK-UP LAMP
Wiring Diagram



BASIC INSPECTION
