Nissan Versa (N17): Remote keyless entry receiver

Nissan Versa 2nd generation (N17) Service Manual / Body exterior, doors, roof & vehicle security / Door & lock (DLK) / Remote keyless entry receiver

Component Function Check

1.CHECK FUNCTION

  1. Select "INTELLIGENT KEY" of "BCM" using CONSULT.
  2. Select "RKE OPE COUN1" in "DATA MONITOR" mode.
  3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES >> Remote keyless entry receiver is OK.

NO for USA >>Refer to DLK "Diagnosis Procedure (For USA)".

NO for Canada>>Refer to DLK "Diagnosis Procedure (For Canada)".

Diagnosis Procedure (For USA)

Regarding Wiring Diagram information, refer to DLK"INTELLIGENT KEY SYSTEM : Wiring Diagram".

1.CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

  1. Turn ignition switch OFF.
  2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES >> Replace BCM. Refer to BCS "Removal and Installation".

NO >> GO TO 2.

2.CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 1

  1. Disconnect BCM and remote keyless entry receiver connectors.
  2. Check continuity between BCM harness connector and remote keyless entry receiver harness connector.
  3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY

Check voltage between remote keyless entry receiver harness connector and ground.

Is the inspection result normal?

YES >> GO TO 4.

NO-1 >> Check 10A fuse No. 14 [located in fuse block J/B].

NO-2 >> Repair or replace harness between BCM and 10A fuse No. 14.

4.CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT

Check continuity between remote keyless entry receiver harness connector and ground.

Is the inspection result normal?

YES >> Replace remote keyless entry receiver. Refer to DLK "Removal and Installation".

NO >> Repair or replace harness.

Diagnosis Procedure (For Canada)

Regarding Wiring Diagram information, refer to DLK "INTELLIGENT KEY SYSTEM : Wiring Diagram".

1.CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

  1. Turn ignition switch OFF.

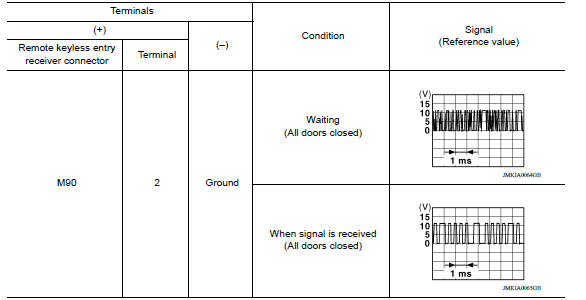

  2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.

Is the inspection result normal?

YES >> GO TO 7

NO >> GO TO 2

2.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY

  1. Disconnect remote keyless entry receiver connector.
  2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.

Is the inspection result normal?

YES >> GO TO 4

NO >> GO TO 3

3.CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 1

  1. Disconnect BCM connector.
  2. Check continuity between BCM connector and remote keyless entry receiver connector.
  3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> Reconnect BCM, GO TO 4

NO >> Repair or replace harness between BCM and remote keyless entry receiver.

4.CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT

Check continuity between remote keyless entry receiver connector and ground.

Is the inspection result normal?

YES >> GO TO 6

NO >> GO TO 5

5.CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 2

Check continuity between BCM connector and remote keyless entry receiver connector.

Is the inspection result normal?

YES >> GO TO 6

NO >> Repair or replace harness between BCM and remote keyless entry receiver.

6.CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 3

  1. Check continuity between BCM connector and remote keyless entry receiver connector.
  2. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 7

NO >> Repair or replace harness between BCM and remote keyless entry.

7.CHECK REMOTE KEYLESS ENTRY RECEIVER RSSI SIGNAL CIRCUIT

  1. Disconnect BCM connector.
  2. Check continuity between BCM harness connector and remote keyless entry receiver harness connector.
  3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES >> GO TO 8

NO >> Repair or replace harness between BCM and remote keyless entry.

8.CHECK REMOTE KEYLESS ENTRY RECEIVER RSSI SIGNAL

  1. Reconnect remote keyless entry receiver connector.
  2. Check signal between remote keyless entry receiver harness connector and ground using oscilloscope.

Is the inspection result normal?

YES >> GO TO 9.

NO >> Replace remote keyless entry receiver. Refer to DLK "Removal and Installation".

9.CHECK INTERMITTENT INCIDENT

Refer to GI "Intermittent Incident".

>> Inspection End.

Key warning lamp

Component Function Check 1.CHECK FUNCTION Select INTELLIGENT KEY of BCM using CONSULT. Select INDICATOR in ACTIVE TEST mode. Touch KEY IND or KEY ON to check that it works normally. Is the ...

Shift P Warning lamp

Component Function Check 1.CHECK FUNCTION Select INTELLIGENT KEY of BCM using CONSULT. Select LCD in ACTIVE TEST mode. Touch SET P to check that it works normally. Is the inspection resu ...
