Nissan Versa 2nd generation (N17) Service Manual / Transmission & driveline / Transaxle & transmission (TM) / Output speed sensor

Exploded View

Exploded View

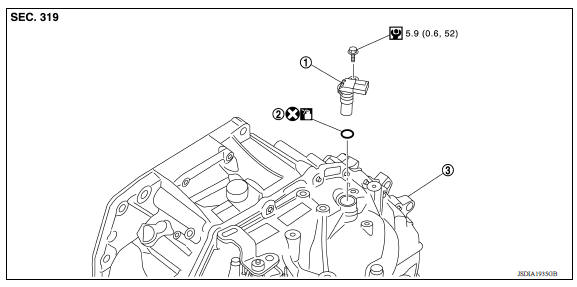

1. Output speed sensor 2. O-ring 3. Transaxle assembly Front

Removal and Installation

REMOVAL

Remove the front LH wheel and tire.
Disconnect the harness connector from output speed sensor.
Remove the output speed sensor.
Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.
Apply Genuine NISSAN Matic S ATF to the O-ring.

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for A/T fluid leakage. Refer to TM "Inspection".

ADJUSTMENT AFTER INSTALLATION

Check the A/T fluid level. Refer to TM "Adjustment".
