Body Center Marks

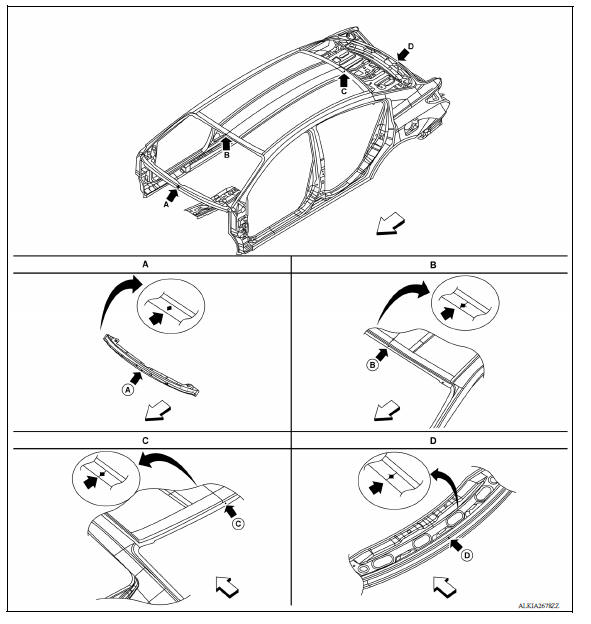

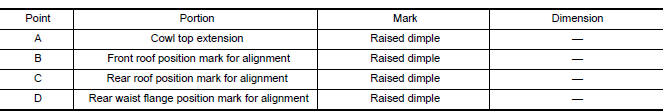

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts damaged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective repair will be possible by using these marks together with body alignment specifications.

Body Center Marks

Front

Body Center Marks

Description

  • All dimensions indicated as shown are actual.
  • When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
  • When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
  • Measurements should be taken at the center of the mounting holes.
  • An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.
  • The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.

Description

Engine Compartment

Measurement

Measurement

Measurement

* Figures marked with an * indicate symmetrically identical dimensions on both RH and LH sides of the vehicle.

Underbody

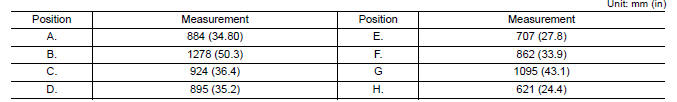

Measurement

Measurement

Front

Measurement

Passenger Compartment

Measurement

Measurement

Measurement

* The vehicle is symmetrically identical dimensions on both RH and LH sides of the vehicle.

Measurement

Measurement

* The vehicle is symmetrically identical dimensions on both RH and LH sides of the vehicle.

Measurement Points

Measurement Points

Rear End Panel

Rear End Panel

Rear End Panel

* The vehicle is symmetrically identical dimensions on both RH and LH sides of the vehicle.
