Nissan Versa (N17): Center console assembly

Nissan Versa 2nd generation (N17) Service Manual / Body interior / Instrument panel (IP) / Center console assembly

Exploded View

Exploded View

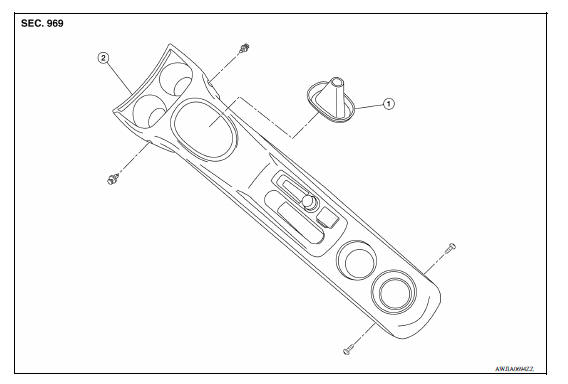

1. M/T console boot (M/T models) 2. Center console assembly

Removal and Installation

REMOVAL

  1. Move shift selector to "N" position (CVT models or A/T models).
  2. Remove shift selector handle and console boot (M/T models).
  3. Raise parking brake lever.

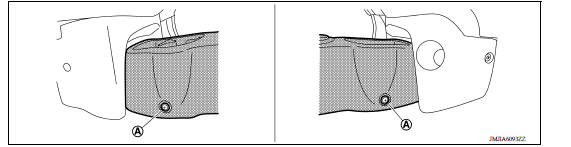

  4. Remove center console assembly clips (A).

REMOVAL

  1. Remove the center console assembly rear screws.
  2. Slide front seat (RH) all the way rearward and place in fully reclined position.
  3. Slide front seat (LH) all the way forward and tilt seatback to the full forward position.
  4. Raise rear right corner of center console assembly, rotating slightly, making sure to lift assembly upward over the parking brake handle.
  5. Disconnect harness connector from power socket and harness connector from USB/auxiliary jack (if equipped).
  6. Remove center console assembly.

REMOVAL

INSTALLATION

Installation is in the reverse order of removal.

Glove box assembly and housing

Removal and Installation REMOVAL     1.   Remove glove box lid. a. Open glove box lid. b. Pull glove box lid rearward and glove box lid hinges down and rearward to dise ...

Center console lower

Removal and Installation REMOVAL Remove center console assembly. Refer to IP "Removal and Installation". Remove center console lower. a. Place front seats in a full rearward positi ...
