Nissan Versa (N17): Cluster lid A

Nissan Versa 2nd generation (N17) Service Manual / Body interior / Instrument panel (IP) / Cluster lid A

Removal and Installation

REMOVAL

  1. Remove steering column covers. Refer to IP "Removal and Installation".
  2. Remove cluster lid C. Refer to IP "Removal and Installation".
  3. Remove cluster lid A.

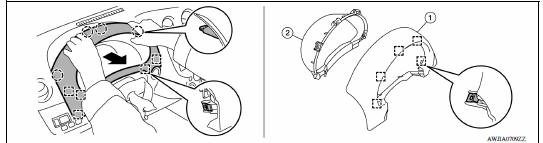

REMOVAL

Pawl

Metal clip

a. Remove combination meter finisher and cluster lid A as an assembly by pulling rearward to release pawls and metal clips.

b. Separate cluster lid A (2) from combination meter finisher (1) by releasing the metal clips (If necessary).

INSTALLATION

Installation is in the reverse order of removal.
